Usage Guidelines

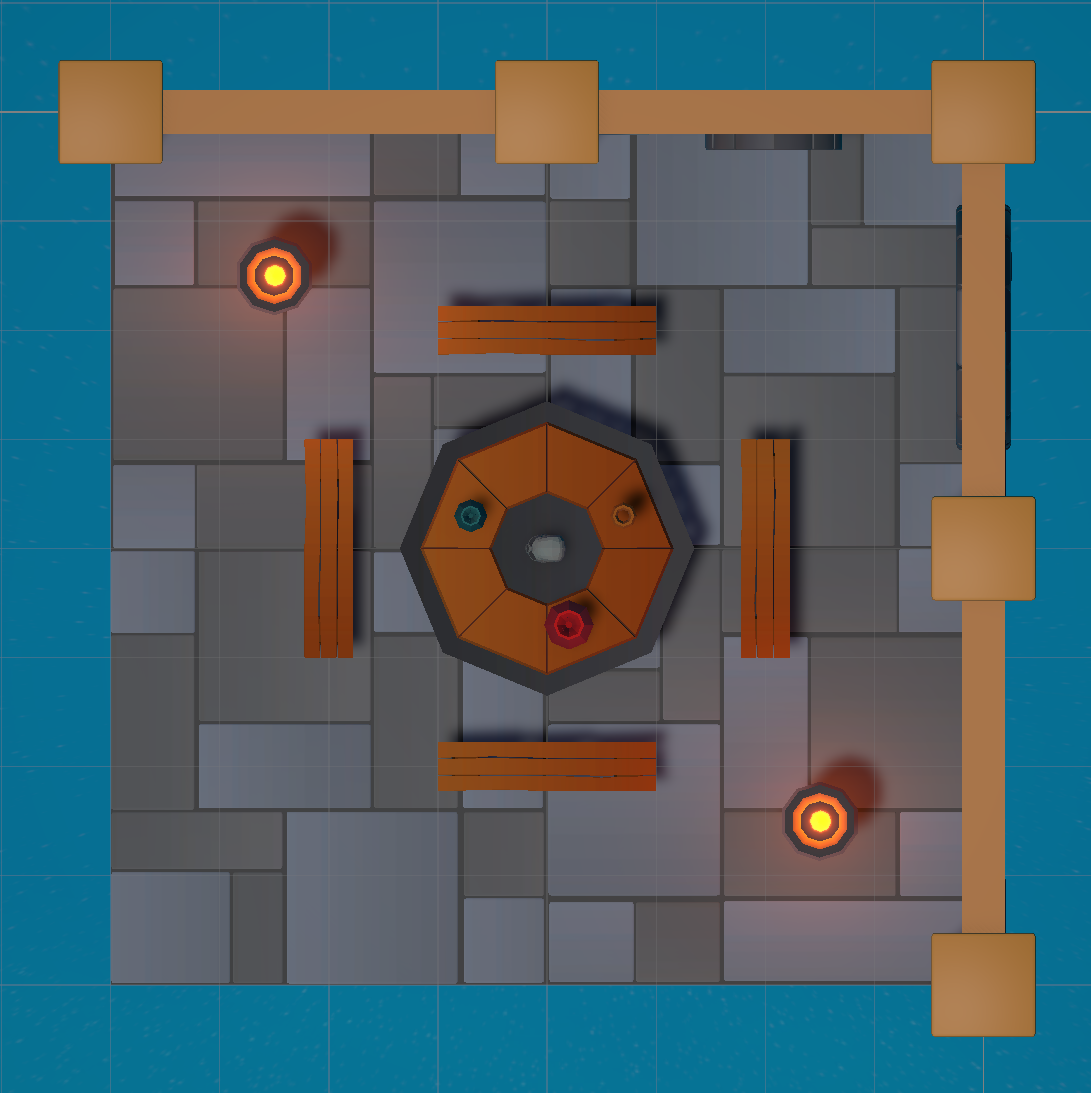

Modular Assembly Tips

Element Types	Recommended Grid Snap
Walls, Arches, Floor Tiles, Pillars	4 Units
Windows, Doors, Ladders, Hatches	1 Unit (+ optional 0.1 unit adjustment for stylization)
Carpets, Candle Holders, Chandeliers, Tables, Chairs	0.5 Unit grid, with 0.1 Y-axis adjustment
Bones, Candles, Crates, Barrels, Torches, Chains, etc.	0.1 Unit grid
Table Parts	Recommended snap: x: 0.81, y: 0.1, z: 1.14

Movable Chains

Chains are fully rigged using Unity’s Animation Rigging system.
To animate a chain, follow these steps:

1. Ensure the Animation Rigging package is installed.

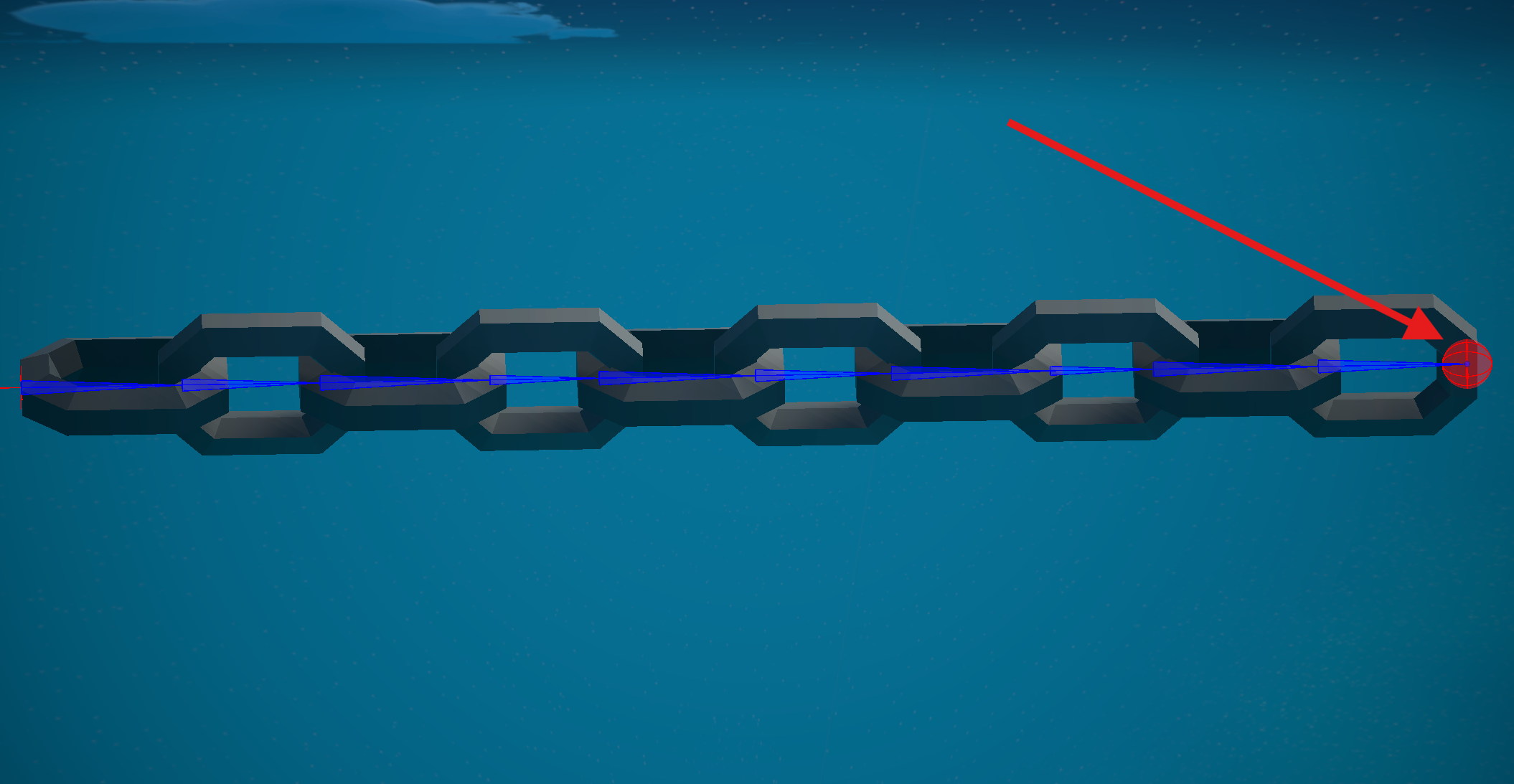

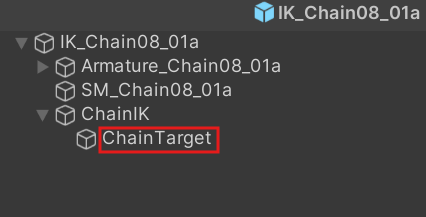

2. Locate the red sphere named ChainTarget (which is a child object of each IK chain prefab).
3. Move the ChainTarget to manipulate the chain via Inverse Kinematics.
